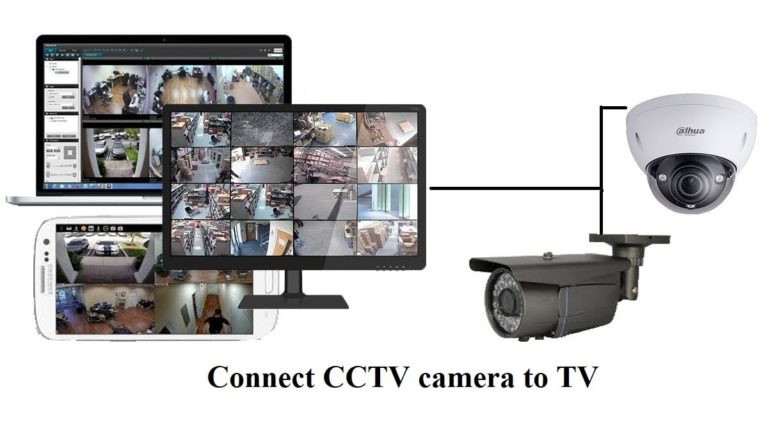

How to connect CCTV camera to TV | 5 Simple Steps

When you buy something through one of the links on our site, We may earn an affiliate commission as an Amazon Associate.

In This article, you’ll learn How to Connect CCTV camera to TV in short easy steps, So, make sure you follow steps in order to get your job done.

Purchasing a CCTV camera system is one of the best investments that you can do to enhance the security of your home.

After Buying a CCTV Analog camera, you will come across the need to connect that to the television. There are numerous methods available for you to do it.

Assuming that you have analog CCTV cameras, we will share the steps on how to connect CCTV camera to TV.

You can follow the step-by-step guide and.

Steps For Connect CCTV Camera to TV

Connect CCTV camera to TV is good for monitoring your whole area live, and see who enters your property while you’re away.

So, let’s jump to steps

Step1: Install the CCTV camera

Before you connect CCTV camera to TV, you need to get the CCTV camera installation done. Depending on the type of CCTV camera you have, the installation steps would vary.

You will be able to get a user manual along with the CCTV camera, which provides detailed information on how to get the installation done on your own.

Or you can hire an installer to mount your camera where you want and direct it to the most important areas around your home.

Step2: Connect the cable to CCTV camera

Once you are done with the mounting and the installation process, you should take the CCTV camera cable and connect that to the cable. You can use an HDMI cable for this step.

You need to carefully do this so that you can ensure that no connection problems can take place.

On the other hand, you need to make sure that the braid of the cable is not in contact along with the center conductor as well.

Step3: Connect the power cable to the CCTV camera

Before you proceed and complete connecting CCTV camera to TV, you should also connect the power cable to your CCTV camera as well.

Power cable is usually provided to you along with the package of the CCTV camera. You should connect that to the power input of the CCTV camera and connect the other end to the wall outlet.

Note: Make sure that you are using the correct adapter to power up the CCTV camera. That’s because the CCTV cameras are usually DC-powered and you should be using an appropriate adapter for it.

Step4: Connect CCTV camera to TV

Now you are done with most of the connections, and you just have to deal with one last connection.

This is where you are connecting the CCTV camera to your television via a cable.

You will be able to connect the analog CCTV camera to your television via the audio-video cable. You can connect the video cable to the video input of your television to see visual footage.

If you want to listen to sounds on the television, you should be connecting the audio cable to the television via audio input as well.

Step5: Turn on the television and select the source

Since you are done with the connections, you can go ahead and turn on the television. Then you should take the remote controller to your hands and enter to setting menu and pick audio and video as the input channel.

You will be able to do this by clicking on the source button on the remote. You can see the audio and video input denoted by AV on the screen.

As soon as you set the input, you will be able to see the footage captured by the camera on your television display screen.

Another alternative method can be used by connecting camera to TV wirelessly with no cables.

Final words

Now you know the simple steps that you can follow on how to connect CCTV camera to TV.

You need to be selecting the right type of cable based on the connectivity options available in your camera and the television.

On the other hand, you need to make sure that you are selecting the right source on your television so that you can watch captured footage.

This is a straightforward process, and you will be able to get the job done on your own.
